3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module

Name: 3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module
Brand: UNIFIBER or OEM
Price: 1 USD

Buy cheap 3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module product

Brand Name : UNIFIBER or OEM

Model Number : T1550 R1310/1490nm FWDM Splitter

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3-5days

Packaging Details : Blister case

Product : 1x2 FWDM Splitter 1310/1490/1550nm

Wavelength : T1550 R1310/1490nm

Operating Wavelength Range(nm) : 1260-1620

Pass wavelengths band(nm) : 1260-1500

Reflection wavelengths band(nm) : 1530~1620

Package : ABS module

Connector : SC/APC

Application : FTTH or CATV

Contact Now

Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

Features

Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability

Applications

System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

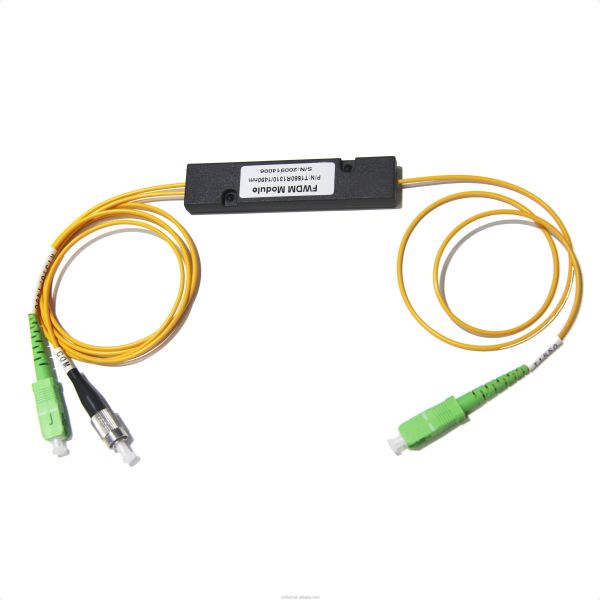

Detailed Image

Name	FWDM
Parameter	5/34 4/35 34/5	Unit
Pass band wavelength	1550+-10 1490+-10 1310+-10 1490+-10	nm
Reflection band 1 wavelength	1310+-40 1310+-40 1550+-10	nm
Reflection band 2 wavelength	1490+-10 1550+-10 1550+-10	nm
Insertion loss	Pass channel <0.6 Reflection channel <0.6	dB
Pass band rippler	Pass channel ≤0.3 Reflection channel ≤0.3	dB
Isolation	Pass channel <0.6 ≥40 Reflection channel <0.6 ≥40	dB
Return loss	>50	dB
Temperature dependent	<0.005	dB/℃
Polarization dependent loss	<0.10	dB
Polarization mode dispersion	<0.10	PS
Directivity	≥50	dB
Maximum optical powder	500	dB
Operating temperature	-20 - +70	℃
Storage temperature	-40 - +85	℃

3 Ports FTTH FWDM Splitter 1310 1490nm SC APC ABS Module
